Straight answer

Is this right for me?

  • You're building a cinema, not background music

    LCR is a home-theatre layout. If you just want music through the house, the ceiling or wall pairs are the cheaper and better-suited answer.

  • Your screen leaves no room for a center speaker

    That's exactly what these solve — the center channel goes into the wall or ceiling instead of onto a shelf that isn't there.

  • Mind the mounting type

    The IW530 goes in a WALL; the C651 and C841 go in a CEILING. They're grouped together because they do the same job, not because they fit the same hole.

Overview

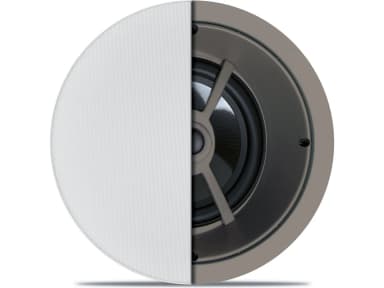

LCR speakers angle their driver bridge toward the seating rather than straight down, so dialogue lands at ear height instead of on the top of your head. Buy three for a front stage — left, center, right — or one on its own as the center channel under a wall-mounted screen. All three models carry bass and treble contour switches, which matter more than usual once a speaker is buried in a ceiling or a wall that colors the sound.

Do I need professional installation for this?

This is the one in the audio range we'd genuinely push you to hand over. Angles, distances and level-matching across three speakers are what separate a cinema from three speakers in a ceiling, and they're set once, at install.

Specifications

TypeIW530 is IN-WALL · C651 and C841 are IN-CEILING. All three sold singly.
WooferIW530: two 5¼" graphite · C651: 6½" polypropylene · C841: 8" graphite
TweeterIW530: pivoting 1" aluminum dome · C651: pivoting 1" soft-dome · C841: pivoting 1" silk-dome
Contour switches±3dB bass & treble (IW530, C841)
CutoutIW530: 6-3/16" × 14½" · C651: 8¼" dia · C841: 9¾" dia
Audio performance
Frequency responseIW530: 65Hz–20kHz · C651: 45Hz–20kHz · C841: 40Hz–22kHz
Power handlingIW530: 100W · C651: 100W · C841: 150W
Impedance8Ω
SensitivityIW530: 88dB · C651: 91dB · C841: 92dB (1W/1m)
Driver bridge angleFixed 15° toward the listener (C651, C841)
Physical
DimensionsIW530: 8" × 15-15/16" × 3-7/16" (H×W×D) · C651: 9¼" dia × 4-9/16" deep · C841: 11⅛" dia × 5-7/8" deep
WeightIW530: 8.6 lb · C651: approx. 5 lb
GrilleThin-bezel, held by neodymium magnets

Specifications sourced from the manufacturer’s published data.

What you'll also need

A box on its own is rarely the whole job. Here’s the honest rest of what makes it work — the integrator’s value, stated plainly.

  • Proficient Audio Systems

    Powered Subwoofer

    The bottom two octaves that in-ceiling and in-wall speakers physically can't produce — the difference between hearing an explosion and feeling it.

    • 8.0"–12.0"
    • install available
    from $749.99Details
Left and right arrow keys scroll between 1 products. Home and End jump to either end.Showing group 1 of 1
  • An AV receiver with discrete L/C/R channels
  • Two more of these if you're building a full front stage
  • In-wall-rated speaker cable back to the receiver

Warranty & returns

Warranty

Ten-year limited warranty to the original retail purchaser (manufacturer's printed warranty, PAS12825 manual). Not transferable, and it excludes commercial use. The warranty period begins on the date you receive the product. Our workmanship guarantee covers any installation we perform. Full terms on our Warranty page.

Shipping

Hardware ships to your door and shipping is calculated at checkout; installation, if you add it, is scheduled separately after a walkthrough. See Shipping & returns.

Returns

Unopened, unused hardware can be returned within 30 days of delivery in its original packaging, with a return authorization. Opened but undamaged hardware is subject to a 15% restocking fee. See Shipping & returns for the full policy.

What's in the box

  • Speaker (one)
  • Thin-bezel magnetic grille
  • Cutout template

FAQ

How do I pay?

By card, online, through Stripe. You enter your card on Stripe's own secure page — your card number never reaches our site. We don't offer cash on delivery.

Do you charge sales tax?

Orders delivered to a Texas address are charged Texas sales tax at 8.25% — the 6.25% state rate plus 2% local — on the hardware subtotal plus shipping, because Texas taxes the delivery charge on taxable goods. Tax is shown as its own line before you pay. Orders delivered outside Texas aren't charged Texas sales tax.

Where do you ship, and what does shipping cost?

We ship to all 50 states and DC, from Dallas–Fort Worth. You pay the shipping at the carrier's live rate: at checkout we compare UPS, FedEx and USPS for your cart and address and show the cheapest carrier for each speed. There's no flat table and no free-shipping threshold, and the price you see is the price you pay.

How long will delivery take?

Dispatch is normally 1–3 business days. Then it's the carrier's transit time for the speed you choose: Standard is 3–5 business days, Express 2 business days, Overnight the next business day. A speed only appears if a carrier will actually do it for your address, and you get a tracking link by email the moment the label is bought.

Is my shipment insured?

Every shipment worth more than $500 is insured automatically for its value. It isn't an extra you tick — the insurance fee is already included in the shipping rate you see at checkout.

Why do projection screens ship by freight?

A projection screen travels flat and long, and a parcel carrier's handling is what damages them. So every screen — and the two kits that include one, the Projection Starter and the Media Room Package — ships by freight, never as a parcel. Within 80 miles of Dallas–Fort Worth we deliver it with installation; anywhere else, checkout offers a "Request a freight quote" form with your cart and address filled in, and we come back with a delivered price.

Do kits cost less than buying the parts separately?

Yes — every kit is 10% off the total of its parts. The saving shows on the kit page, in the cart and at checkout, and it applies while every part of the kit is in your cart. Discount codes don't apply to kits, since they already carry the kit saving.

What happens if something I ordered is out of stock?

We contact you. You choose between an equivalent alternative at the original price or a full refund for that item — we never substitute without asking.

Why is your camera more expensive than the same-looking one online?

Because it usually isn't the same camera. The housing can be identical while the sensor, lens, low-light behavior, and firmware support are not. We choose equipment we can stand behind for years and service locally, and we'll always tell you plainly what the cheaper look-alike gives up.

Can I supply my own hardware and have you install it?

Happy to. Bring the cameras, recorder, speakers, or gear you already own — if it's standards-compatible and in good shape, we'll design around it and install it properly. We'll tell you plainly at the walkthrough if a specific piece is holding the system back, but there's no obligation to buy your hardware from us.

Can I buy hardware from you without installation?

Yes. Anything in the shop is real hardware you can buy and take delivery of on its own — a single camera, a recorder, a drive, a speaker, a full kit. Professional installation is an option you add only if you want it, never forced.

Can I install it myself?

Absolutely. Everything in the shop is yours to install. Each product page gives an honest read on how hard the self-install actually is, and where having us do it is worth it — usually hidden cable, overlapping camera coverage, or anything going inside walls.

Can I mix hardware I already own with new hardware from you?

Yes. A new recorder with the cameras you already have, or new speakers on your existing wiring, is a common job. We check compatibility at the walkthrough so the parts actually work together.

Do I have to buy installation to get a walkthrough?

No. Walkthroughs are free and carry no obligation, whether you end up buying hardware from us, bringing your own, or deciding not to go ahead.

If I add installation to an order, what am I charged?

Installation isn't charged today. Aji quotes it after a free walkthrough. Adding it is a request, not a purchase — you pay for the hardware at checkout and nothing for installation until you've approved Aji's quote.
